A professional use electrochemical measurement platform

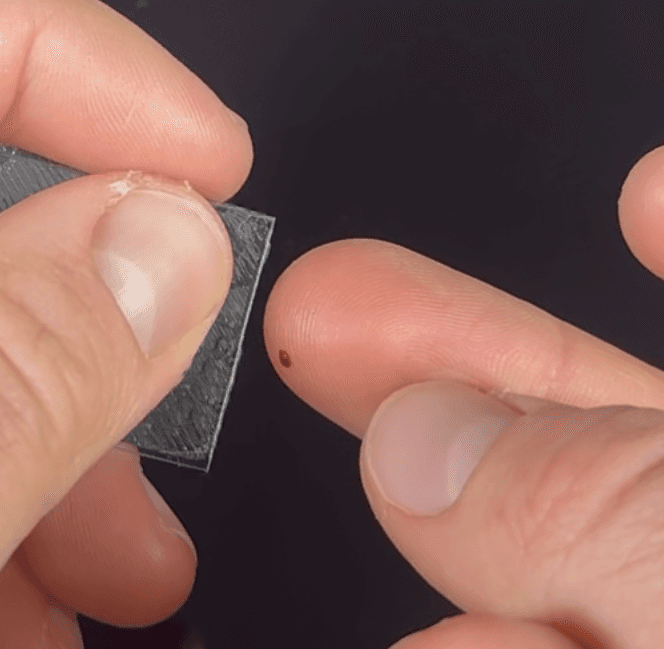

Step 1
Step 2
Step 3
System Overview
Dimensions: 125 x 225 x 36 mm
Display: 4.3” IPS touchscreen
Processor: Raspberry Pi 5, quad-core
Power: USB-C, 5V input (regulated from 7.4V internal)
Connectivity: USB-C, optional Bluetooth LE
Operating Conditions: 10–40°C, 10–90% RH, non-condensing
Operating System: Linux-based environment with custom UI

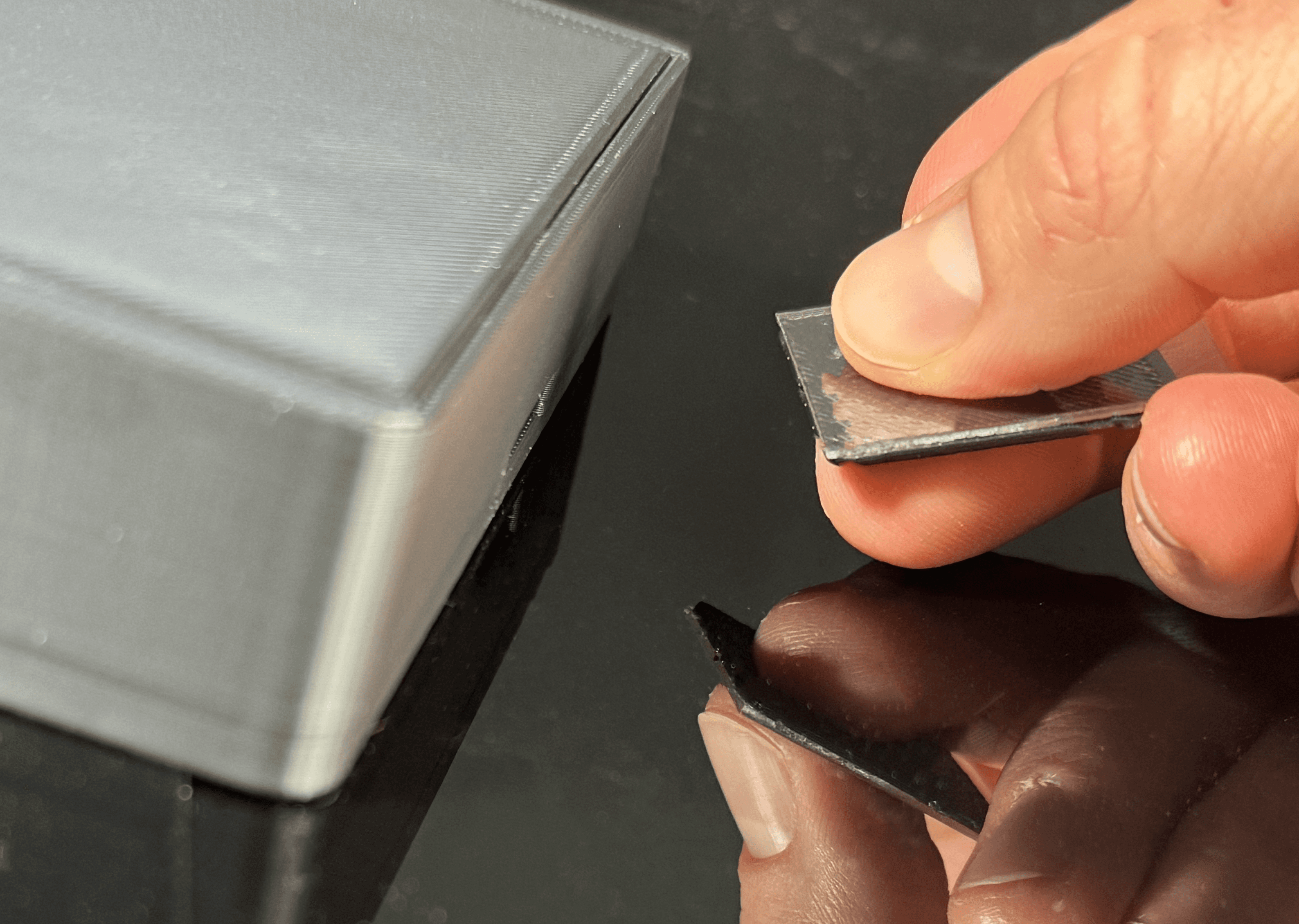

Strip Technology
Multi-layer electrochemical test strip using reference electrodes, working electrodes, and precision dielectric architecture.
Designed to support consistent quantitative signal acquisition from low-volume samples. Materials and geometry are optimized for stable electrochemical behavior, controlled fluid interaction, and repeatable manufacturing.
Engineered as a core sensing interface within the Corvidan measurement platform, emphasizing materials science, signal integrity and scalable production.
